AndPet 2-Storey Steel Frame
Project Type: Buildings
Market: Commercial
Client: AndPet Realty
Date: Fall 2024 - Summer 2025
About this Project
Services Performed: Structural design of foundations and structural steel framing, preparation of sealed structural design drawings, steel fabrication shop drawing review, and construction phase support.
- Structural Design Utilizing S-Frame Software Analysis
- CMU wall systems at elevator and stairwells
- Custom Steel Overhangs for Front Entrance and Roof

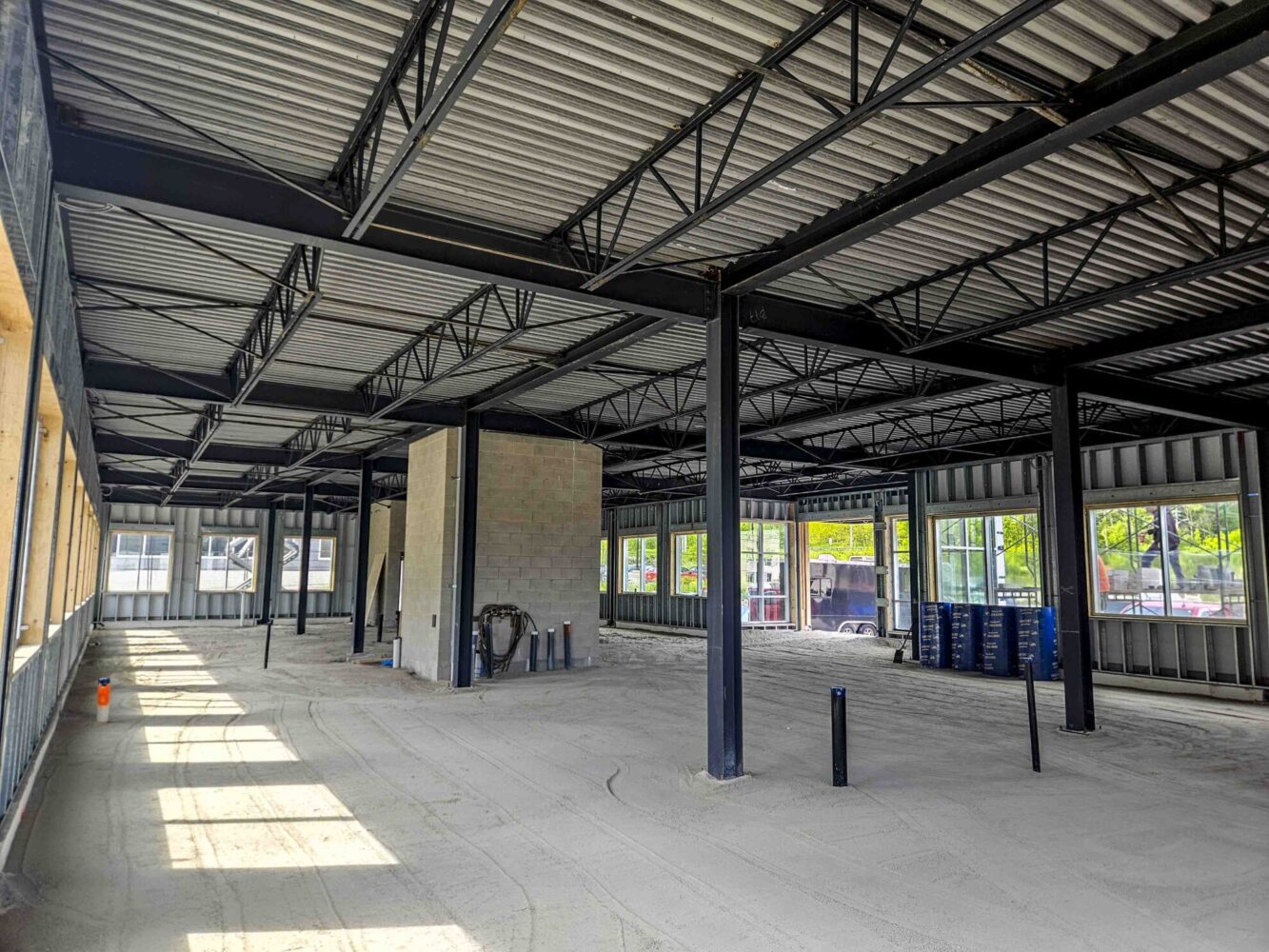

- Composite Steel Floor Deck with Concrete In-Fill

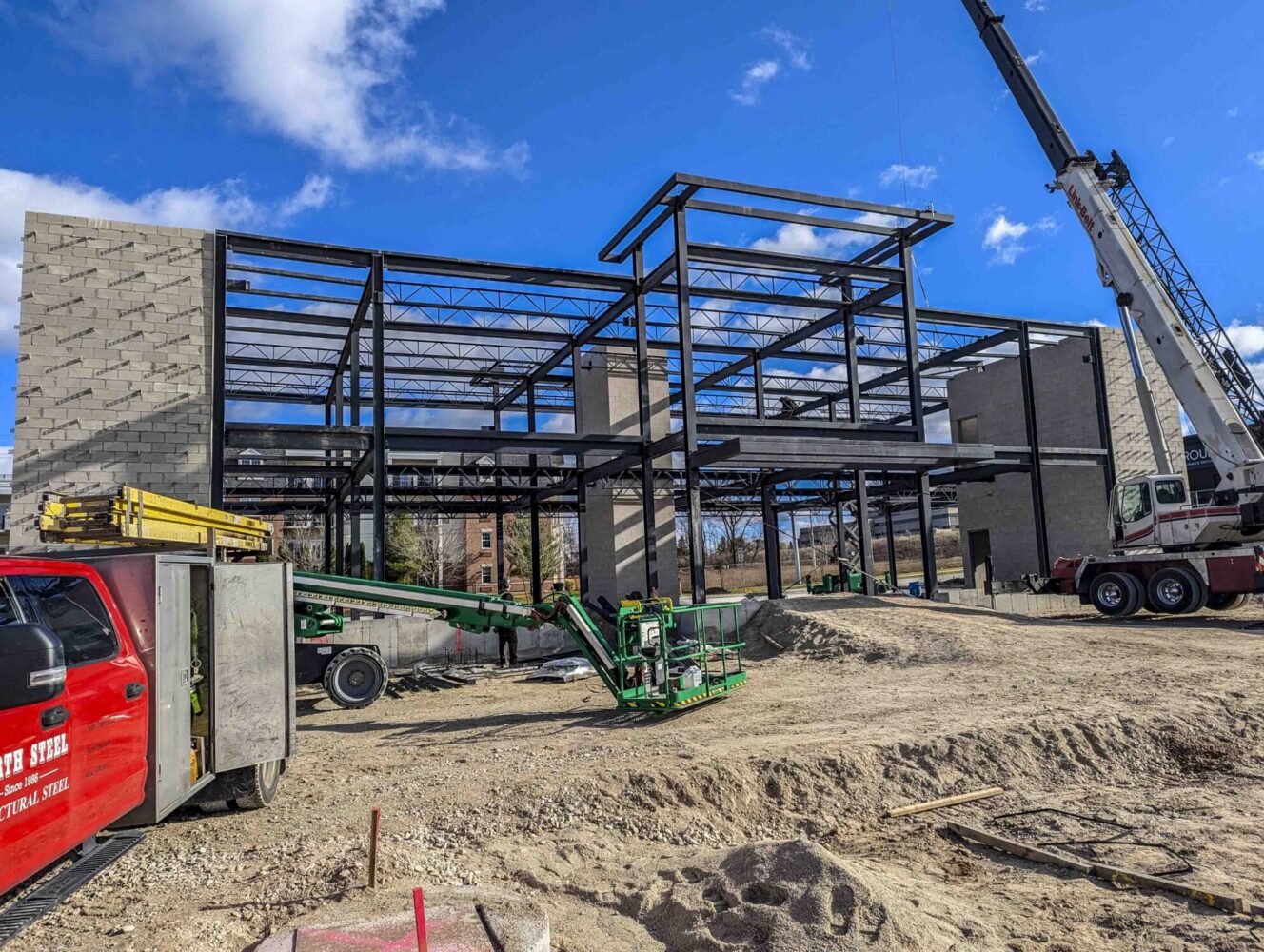

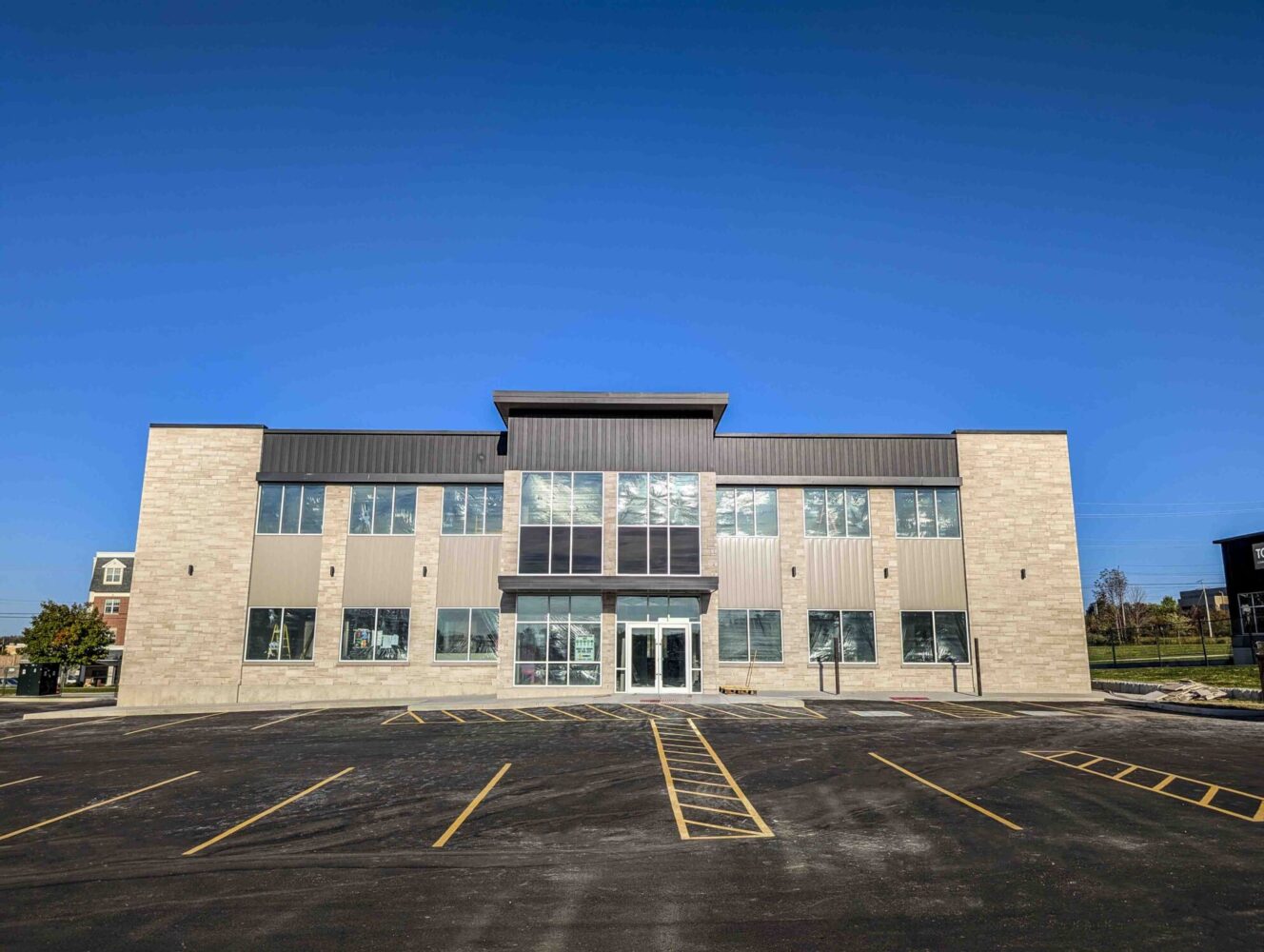

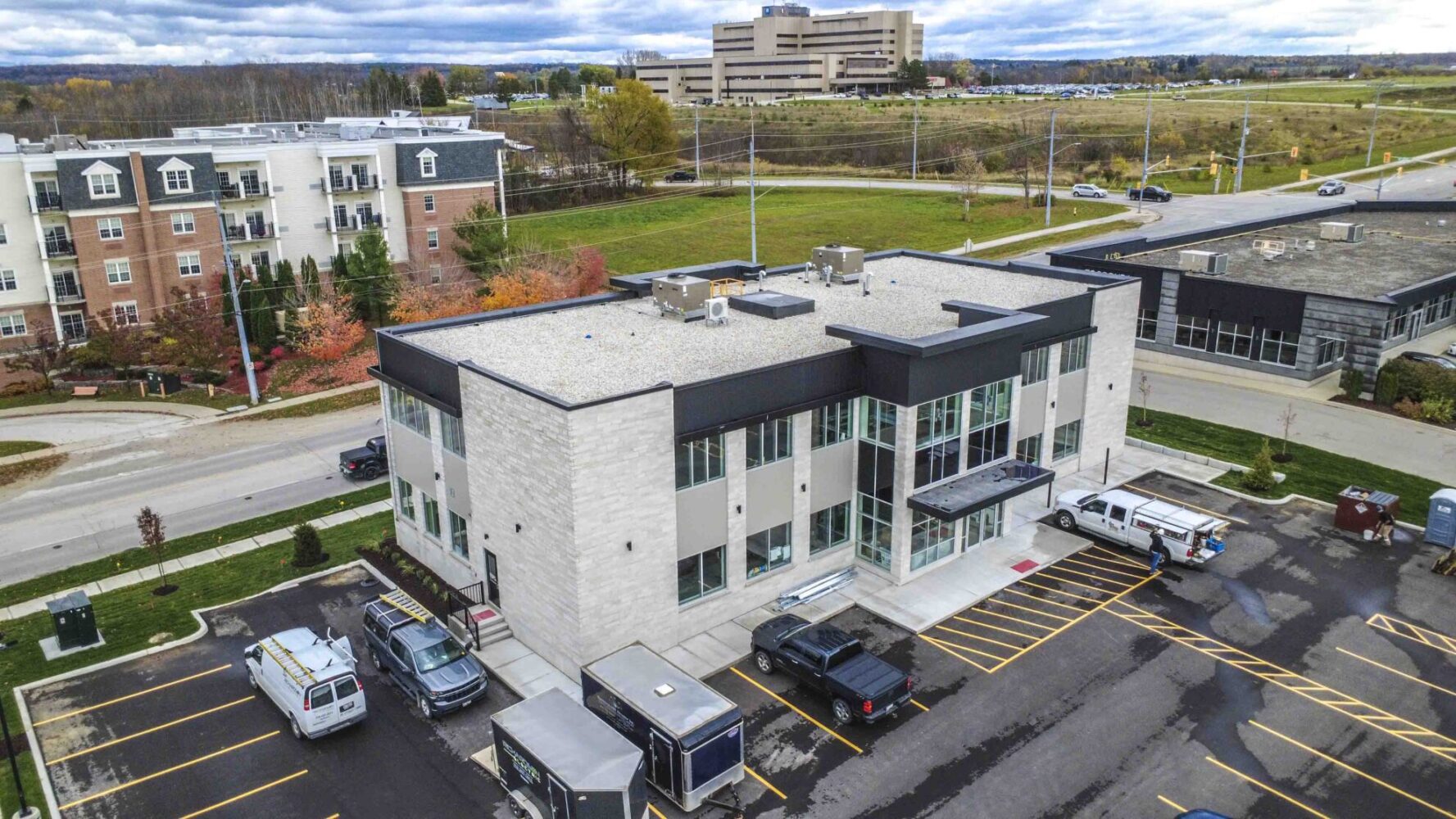

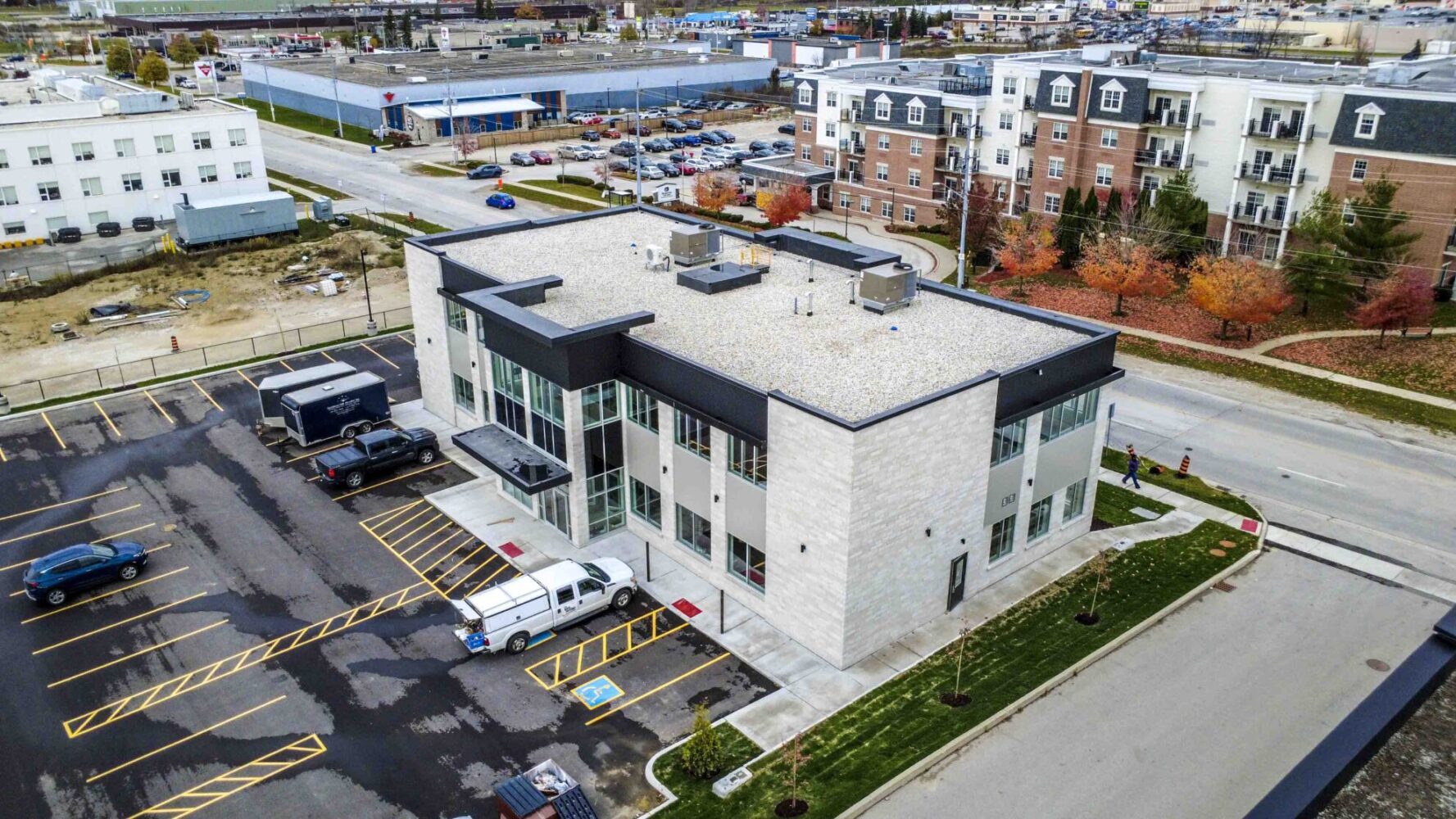

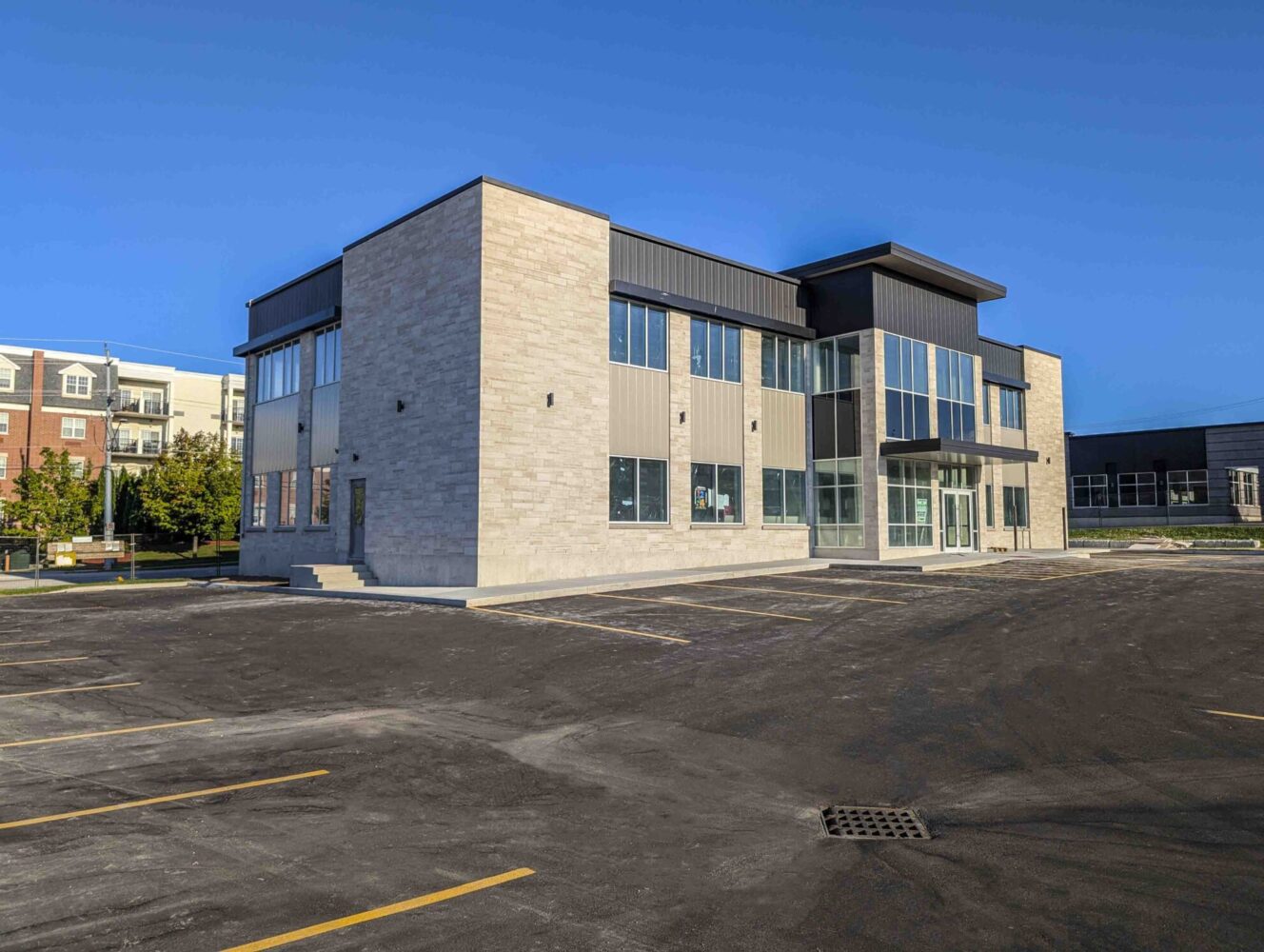

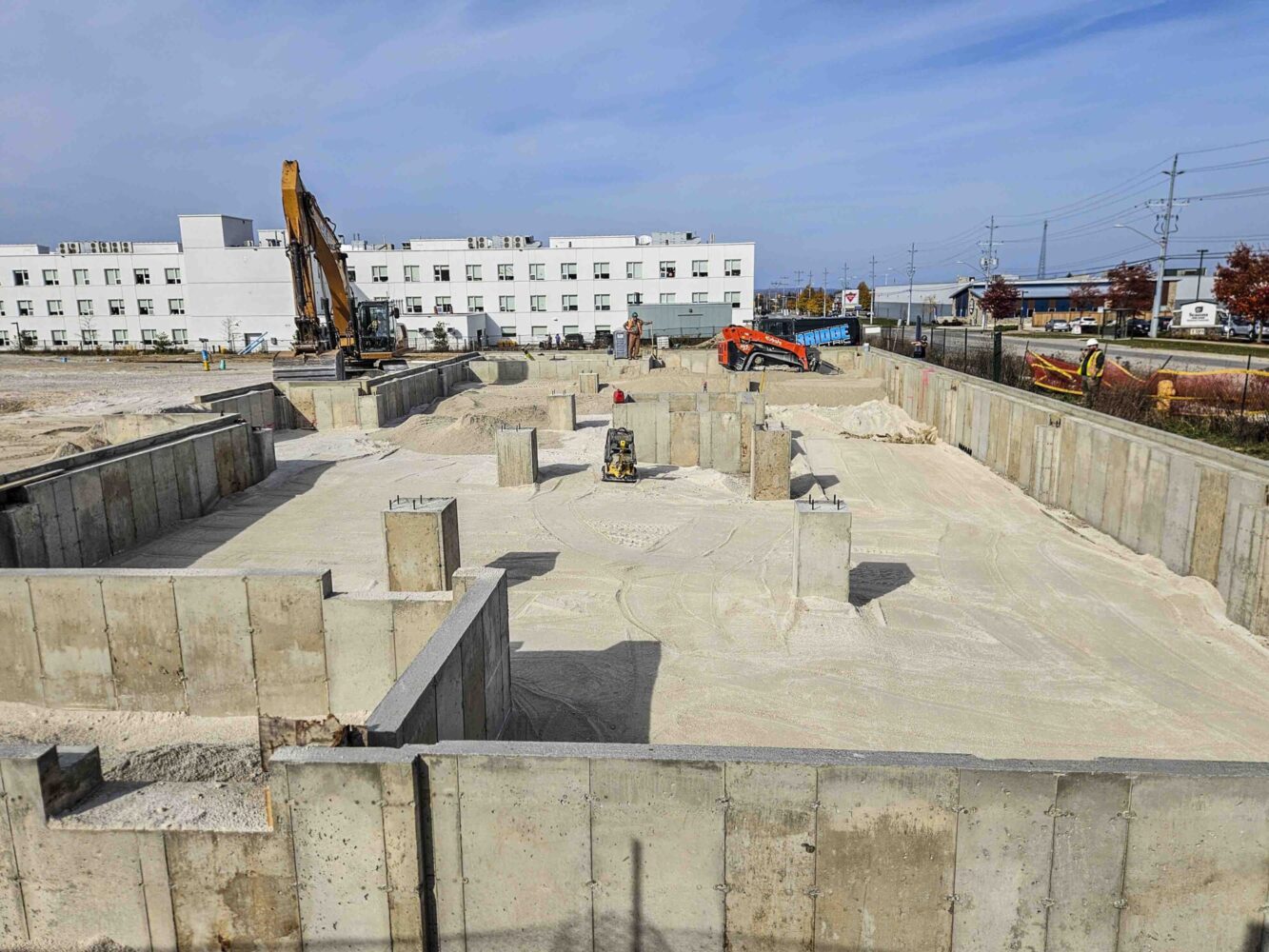

In 2024, Pearson Engineering was engaged by AndPet Realty to complete the structural design of a two-storey commercial office building in the City of Owen Sound. The building consists of a custom structural steel framing system supporting steel deck and OWSJ floor / roof systems. The elevator shaft and stairwells were erected utilizing CMU wall construction. The cast-in-place concrete foundations consisted of exterior walls supported by strip footings and interior piers supported on pad footings. The lateral sway resistance of the building was accomplished with diaphragm deck systems, moment connections and shearwalls.
